TWIN WALL INSULATED CHIMNEYS DUALINOX DUALINOX Twin Wall Insulated Chimney OFFSET CALCULATIONS Tee 135°L + EDP 550 Inspection Elbow 45 °INSPECTION ELBOW 45° + EDP 550 TEE 135 + EDP 550 + EDP 550 D D D H D H Ø 130 691 991 489 857 H H Ø 150 705 1017 495 885...
More

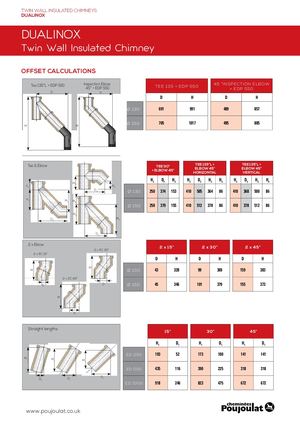

TWIN WALL INSULATED CHIMNEYS DUALINOX DUALINOX Twin Wall Insulated Chimney OFFSET CALCULATIONS Tee 135°L + EDP 550 Inspection Elbow 45 °INSPECTION ELBOW 45° + EDP 550 TEE 135 + EDP 550 + EDP 550 D D D H D H Ø 130 691 991 489 857 H H Ø 150 705 1017 495 885 Tee & Elbow TEE 135°L + TEE 135°L + TEE 90° ELBOW 45° ELBOW 45° + ELBOW 45° HORIZONTAL VERTICAL H2 D2 H3 H2 D2 H3 H4 H2 D2 H3 H4 H2 H4 H3 D2 Ø 130 250 374 153 410 505 364 86 410 368 500 86 H2 H3 H4 Ø 150 250 379 155 410 512 378 86 410 378 512 86 H2 D2 H3 D2 2 x Elbow 2 x 1 5° 2 x 30° 2 x 45° 2 x EC 30° 2 x EC 15° D H D H D H H H Ø 130 43 328 99 369 159 383 2 x EC 45° D D Ø 150 45 346 101 379 155 373 H D Straight lengths 1 5° 30° 45° H1 D1 H1 D1 H1 D1 ED 250 193 52 173 100 141 141 H1 H1 H1 ED 500 435 116 390 225 318 318 D1 D1 D1 ED 1000 918 246 823 475 672 672 www.poujoulat.co.uk
