TWIN-WALL INSULATED SYSTEM CHIMNEY THERMINOX TWIN-WALL INSULATED OFFSET CALCULATIONS CHIMNEY SYSTEMS MULTI-FUEL CHIMNEY To calculate the offset: • Choose the required angle and select the right column. • Add the offset of the elbows (D) to the straight...
Leggi di più

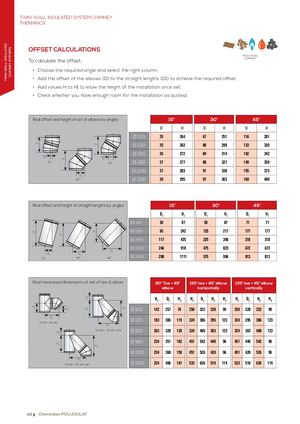

TWIN-WALL INSULATED SYSTEM CHIMNEY THERMINOX TWIN-WALL INSULATED OFFSET CALCULATIONS CHIMNEY SYSTEMS MULTI-FUEL CHIMNEY To calculate the offset: • Choose the required angle and select the right column. • Add the offset of the elbows (D) to the straight lengths (D1) to achieve the required offset. • Add values H to H1 to know the height of the installation once set. • Check whether you have enough room for the installation as quoted. Real offset and height of set of elbows by angles 15° 30° 45° D H D H D H Ø 100 35 264 67 251 116 281 H H Ø 130 35 262 80 299 133 320 Ø 150 36 272 84 314 142 342 D H D 15° 30° Ø 180 37 277 88 327 149 359 Ø 200 37 283 91 338 155 373 D 45° Ø 250 39 295 97 363 169 409 Real offset and height of straight lengths by angles 15° 30° 45° D1 H1 D1 H1 D1 H1 ED 100 26 97 50 87 71 71 H1 H1 ED 250 65 242 125 217 177 177 H1 ED 450 117 435 225 390 318 318 45° D1 ED 1000 246 918 475 823 672 672 D1 D1 15° 30° 45° ED 1200 298 1111 575 996 813 813 Real measures/dimensions of s
