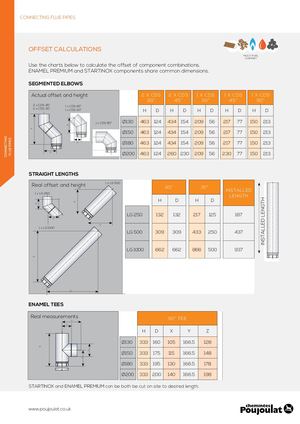

CONNECTING FLUE PIPES OFFSET CALCULATIONS MULTI-FUEL CHIMNEY Use the charts below to calculate the offset of component combinations. ENAMEL PREMIUM and STARTINOX components share common dimensions. 7,5%SEGMENTED ELBOWS Actual offset and height 2 X CDS 2 X CDS 1 X CDS 1 X CDS 1 X CDS 30° 45° 30° 45° 90° 2 x CDS 45° 1 x CDS 45° 2 x CDS 30° 1 x CDS 30° H D H D H D H D H D 7, 5% 1 x CDS 90° Ø130 463 124 434 154 209 56 217 77 150 213 H H Ø150 463 124 434 154 209 56 217 77 150 213 CONNECTING FLUE PIPES D H Ø180 463 124 434 154 209 56 217 77 150 213 D D Ø200 463 124 260 230 209 56 230 77 150 213 STRAIGHT LENGTHS 1 x LG 500 Real offset and height 45° 30° INSTALLED 1 x LG 250 LENGTH INSTALLED LENGTH H H D H D H LG 250 132 132 217 125 187 D D 1 x LG 1000 LG 500 309 309 433 250 437 LG 1000 662 662 866 500 937 H D ENAMEL TEES Real measurements 90° TEE D X H D X Y Z Ø130 333 160 105 166.5 128 H Z Ø150 333 175 115 166.5 148 Y Ø180 333 195 130 166.5 178 Ø200 333 200 140 166.5 198 STARTINOX and ENAMEL
