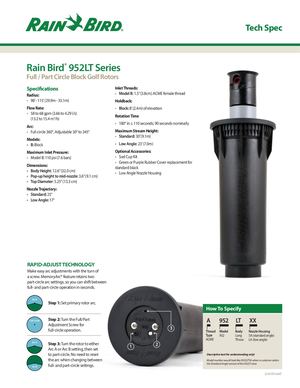

Tech Spec Rain Bird® 952LT Series Full / Part Circle Block Golf Rotors Specifications Inlet Threads: Radius: • Model B: 1.5” (3.8cm) ACME female thread • 98’ - 115’ (29.9m - 35.1m) Holdback: Flow Rate: • Block: 8’ (2.4m) of elevation • 58 to 68 gpm (3.66 to...
More
Tech Spec Rain Bird® 952LT Series Full / Part Circle Block Golf Rotors Specifications Inlet Threads: Radius: • Model B: 1.5” (3.8cm) ACME female thread • 98’ - 115’ (29.9m - 35.1m) Holdback: Flow Rate: • Block: 8’ (2.4m) of elevation • 58 to 68 gpm (3.66 to 4.29 l/s) Rotation Time (13.2 to 15.4 m3/h) • 180° in ≤ 110 seconds; 90 seconds nominally Arc: • Full-circle 360°, Adjustable 30° to 345° Maximum Stream Height: • Standard: 30’ (9.1m) Models: • B: Block • Low Angle: 23’ (7.0m) Maximum Inlet Pressure: Optional Accessories: • Model B: 110 psi (7.6 bars) • Sod Cup Kit • Green or Purple Rubber Cover replacement for Dimensions: standard black • Body Height: 12.6” (32.0 cm) • Low Angle Nozzle Housing • Pop-up height to mid-nozzle: 3.6” (9.1 cm) • Top Diameter: 5.25” (13.3 cm) Nozzle Trajectory: • Standard: 25° • Low Angle: 17° RAPID-ADJUST TECHNOLOGY Make easy arc adjustments with the turn of a screw. MemoryArc® feature retains two part-circle arc settings, so you can shift between full-
