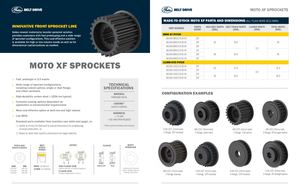

MOTO XF SPROCKETS MADE-TO-STOCK MOTO XF PARTS AND DIMENSIONS (ALL PLAIN BORE Ø12.0MM) INNOVATIVE FRONT SPROCKET LINE PART NUMBER TOOTH MAX BELT WIDTH BELT TRACK WIDTH FLANGE WIDTH TOTAL WIDTH COUNT (MM) (MM) (MM) (MM) Gates newest motorcycle/scooter sprocket solution provides customers with fast prototyping and a wide range 8MM GT PITCH of sprocket configurations. This cost-effective solution M1349-08022-ST26-54 22T is available for high or low volume needs as well as for M1349-08024-ST26-54 24T 20 25.5 29 dimensional customizations as needed. M1349-08025-ST26-54 25T 3.5 M1349-08022-ST41-54 22T M1349-08024-ST41-54 24T 36 41.5 45 M1349-08025-ST41-54 25T MOTO XF SPROCKETS 11MM HTD PITCH M1349-11022-ST28-54 22T 22 27.5 31.5 M1349-11023-ST28-54 23T 4.0 M1349-11022-ST41-54 22T 36 41.5 45.5 M1349-11023-ST41-54 23T ■ Fast: prototype in 2-3 weeks ■ Wide range of sprocket configurations, TECHNICAL including custom splines, single or dual flange, SPECIFICATIONS and offset variations MATERIAL CON
