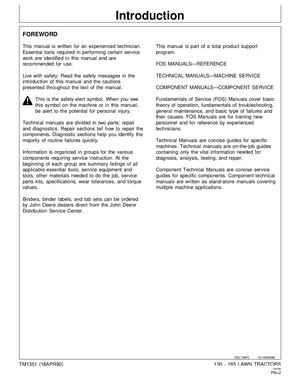

John Deere TM1351 Technical Manual
JD 130, 160, 165, 175, 180,185Technical tm1351
Mechanical Repair & ComponentsSection 10 — General Information: Covers basic safety protocols, general machinery specifications, cap screw torque values, tune-up steps, and serial number locations.
Section 20 — Engine: Outlines complete engine removal, installation procedures, and muffler servicing.
Section 30 — Fuel and Air System: Focuses on the fuel pump and fuel tank components.
Section 40 — Electrical: Covers the electric PTO clutch repair and specifications.
Section 50 — Power Train: Details components including traction drive clutches, 5-speed transaxles, Eaton and Sundstrand hydrostatic transmissions, and Peerless or Kanzaki differentials.
Section 60 — Steering and Brakes: Covers the complete steering system assembly, front axle, and brake linkages.
Section 80 — Miscellaneous: Focuses on the cutting deck attachments, specifically mower spindles and lift linkages.Operation,
