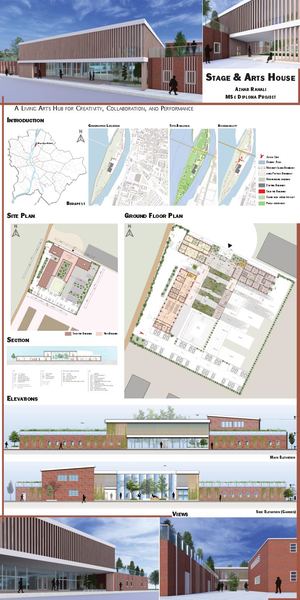

Stage & Arts House Azhar Rahali MSc Diploma Project A Living Arts Hub for Creativity, Collaboration, and Performance Introduction Geographic Location Site Analysis Accessibility Népsziget Island Access Side Danube River Népsziget Island Boundary GANZ Factory Boundary Neighbouring buildings Existing Buildings Selected Buildings Green area within the plot Budapest Public green area Site Plan Ground Floor Plan Selected Buildings New Building Section F1 W1 S1,S2 : Steel Composite Slab Layer R1 1.5 cm Tile + Adhesive 1 lyr Colour plaster 5cm Tile Finish Vegetation 6 cm Concrete base 1 lyr Adhesive 1lyr vapor barrier 0.1 cm Filter Layer (geotextile) 1 lyr Polyethylene (PE) Foil 15 cm Thermal insulation 10cm Insulation Layer (XPS) 10 cm Roof Soil 8 cm Thermal Insulation (XPS) 1 lyr bituminous sheet 15 cm Main Concrete Slab 0.2 cm Filter Layer (geotextile) 1lyr Waterproofing Membrane 20cm Steel Deck 5 cm water storage layer 1lyr Bitumen Primer 48 cm Brick wall 40 cm Structural Steel Beams (Ste
