SENTINEL™ SERIES Hazardous Location Lighting Designed for hazardous environments, the SENTINEL C1D1 linear light is ideal for environments where explosive and flammable gas, liquids, or vapors are present in normal operating conditions. They are also known...
More

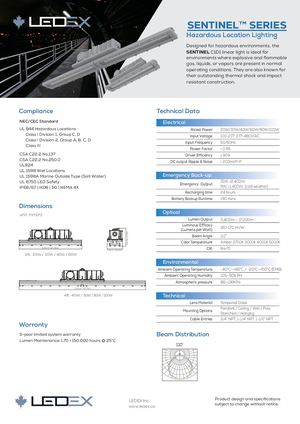

SENTINEL™ SERIES Hazardous Location Lighting Designed for hazardous environments, the SENTINEL C1D1 linear light is ideal for environments where explosive and flammable gas, liquids, or vapors are present in normal operating conditions. They are also known for their outstanding thermal shock and impact resistant construction. Compliance Technical Data NEC/CEC Standard Electrical UL 844 Hazardous Locations Rated Power 20W/30W/40W/60W/80W/100W Class I Division 1, Group C, D Input Voltage 100-277, 277-480V/AC Class I Division 2, Group A, B, C, D Input Frequency 50/60Hz Class III Power Factor > 0.95 CSA C22.2 No.137 Driver Efficiency ≥ 90% CSA C22.2 No.250.0 DC output Ripple & Noise < 200mVP-P UL924 UL 1598 Wet Locations UL 1598A Marine Outside Type (Salt Water) Emergency Back-up UL 8750 LED Safety 15W, ≥2,400lm Emergency Output IP66/67 | IK08 | 5G | NEMA 4X 9W, ≥1,400lm (cold weather) Recharging time 24 hours Battery Backup Runtime ≥90 mins Dimensions unit: mm(in) Optical Lumen Output 3,4
