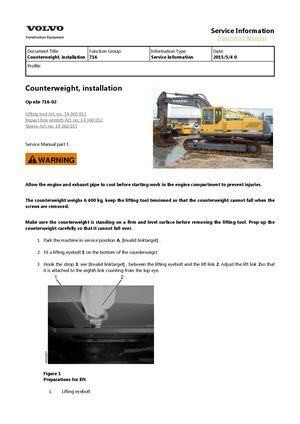

Service Information Download Manual Document Title: Function Group: Information Type: Date: Counterweight, installation 716 Service Information 2015/5/4 0 Profile: Counterweight, installation Op nbr 716-02 Lifting tool Art. no. 14 360 011 Impact box wrench Art. no. 14 360 012 Sleeve Art. no. 14 360 013 Service Manual part 1 WARNING Allow the engine and exhaust pipe to cool before starting work in the engine compartment to prevent injuries. The counterweight weighs 6 400 kg, keep the lifting tool tensioned so that the counterweight cannot fall when the screws are removed. Make sure the counterweight is standing on a firm and level surface before removing the lifting tool. Prop up the counterweight carefully so that it cannot fall over. 1. Park the machine in service position A, [Invalid linktarget] . 2. Fit a lifting eyebolt 1 on the bottom of the counterweigit. 3. Hook the strop 3, see [Invalid linktarget] , between the lifting eyebolt and the lift link 2. Adjust the lift link 2so that
