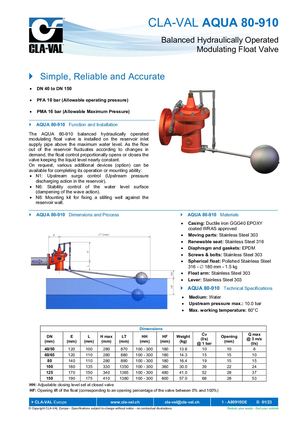

CLA-VAL AQUA 80-910 Balanced Hydraulically Operated Modulating Float Valve Simple, Reliable and Accurate DN 40 to DN 150 PFA 10 bar (Allowable operating pressure) PMA 16 bar (Allowable Maximum Pressure) AQUA 80-910 Function and Installation The AQUA 80-910 balanced hydraulically operated modulating float valve is installed on the reservoir inlet supply pipe above the maximum water level. As the flow out of the reservoir fluctuates according to changes in demand, the float control proportionally opens or closes the valve keeping the liquid level nearly constant. On request, various additional devices (option) can be available for completing its operation or mounting ability: N1: Upstream surge control (Upstream pressure discharging action in the reservoir). N6: Stability control of the water level surface (dampening of the wave action). N8: Mounting kit for fixing a stilling well against the reservoir wall. AQUA 80-910 Dimensions and Process AQUA 80-910 Materials C
