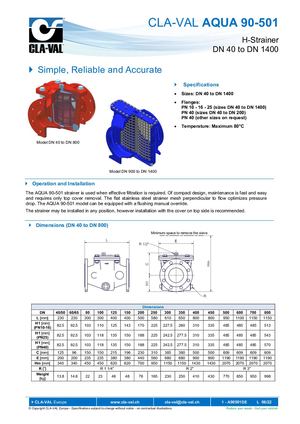

CLA-VAL AQUA 90-501 H-Strainer DN 40 to DN 1400 Simple, Reliable and Accurate Specifications Sizes: DN 40 to DN 1400 Flanges: PN 10 - 16 - 25 (sizes DN 40 to DN 1400) PN 40 (sizes DN 40 to DN 200) PN 40 (other sizes on request) Temperature: Maximum 80°C Model DN 40 to DN 800 Model DN 900 to DN 1400 Operation and Installation The AQUA 90-501 strainer is used when effective filtration is required. Of compact design, maintenance is fast and easy and requires only top cover removal. The flat stainless steel strainer mesh perpendicular to flow optimizes pressure drop. The AQUA 90-501 model can be equipped with a flushing manual override. The strainer may be installed in any position, however installation with the cover on top side is recommended. Dimensions (DN 40 to DN 800) Minimum space to remove the sieve Dimensions DN 40/50 60/65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 L [mm] 230 230 300 300 400 400 500 580 610 650 800 800 950 1100 1150 1150 H1 [mm] 82.5 92.
