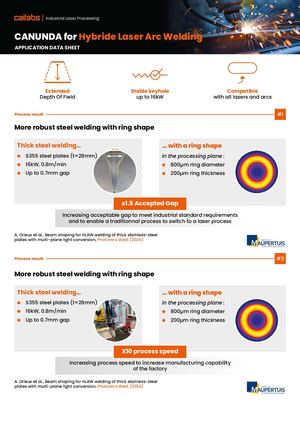

[Data sheet] CANUNDA - Hybride Laser Arc Welding

Industrial Laser Processing CANUNDA for Hybride Laser Arc Welding APPLICATION DATA SHEET Extended Stable keyhole Compatible Depth Of Field up to 16kW with all lasers and arcs Process result #1 More robust steel welding with ring shape Thick steel welding… 5... More

Industrial Laser Processing CANUNDA for Hybride Laser Arc Welding APPLICATION DATA SHEET Extended Stable keyhole Compatible Depth Of Field up to 16kW with all lasers and arcs Process result #1 More robust steel welding with ring shape Thick steel welding… 5 mm … with a ring shape ● S355 steel plates (t=28mm) in the processing plane : ● 16kW, 0.8m/min ● 800µm ring diameter ● Up to 0.7mm gap ● 200µm ring thickness x1.5 Accepted Gap Increasing acceptable gap to meet industrial standard requirements and to enable a traditionnal process to switch to a laser process A. Orieux et al., Beam shaping for HLAW welding of thick stainless-steel plates with multi-plane light conversion, Photonics West (2024) Process result #2 More robust steel welding with ring shape Thick steel welding… … with a ring shape ● S355 steel plates (t=28mm) in the processing plane : ● 16kW, 0.8m/min ● 800µm ring diameter ● Up to 0.7mm gap ● 200µm ring thickness X10 process speed Increasing process speed to increase manuf Less
