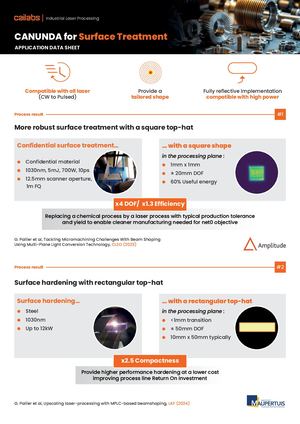

[Data sheet] CANUNDA - Surface Treatment

Industrial Laser Processing CANUNDA for Surface Treatment APPLICATION DATA SHEET Compatible with all laser Provide a Fully reflective implementation (CW to Pulsed) tailored shape compatible with high power Process result #1 More robust surface treatment... More

Industrial Laser Processing CANUNDA for Surface Treatment APPLICATION DATA SHEET Compatible with all laser Provide a Fully reflective implementation (CW to Pulsed) tailored shape compatible with high power Process result #1 More robust surface treatment with a square top-hat Confidential surface treatment… … with a ring shape in the processing plane : ● Confidential material ● 1mm x 1mm ● 1030nm, 5mJ, 700W, 10ps ● ± 20mm DOF ● 12.5mm scanner aperture, ● 60% Useful energy 1m FQ x4 DOF/ x1.3 Efficiency Replacing a chemical process by a laser process with typical production tolerance and yield to enable cleaner manufacturing needed for net0 objective G. Pallier et al, Tackling Micromachining Challenges With Beam Shaping Using Multi-Plane Light Conversion Technology, CLEO (2023) Process result #2 Surface hardening with rectangular top-hat Surface hardening… … with a rectangular top-hat ● Steel in the processing plane : ● 1030nm ● <1mm transition ● Up to 12kW ● ± 50mm DOF ● 10mm x 50mm typi Less
