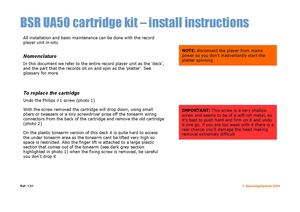

BSR UA50 cartridge kit – install instructions All installation and basic maintenance can be done with the record player unit in-situ NOTE: disconnect the player from mains Nomenclature power so you don't inadvertently start the platter spinning In this document we refer to the entire record player unit as the 'deck', and the part that the records sit on and spin as the 'platter'. See glossary for more To replace the cartridge Undo the Philips #1 screw (photo 1) With the screw removed the cartridge will drop down, using small IMPORTANT: This screw is a very shallow pliers or tweezers or a tiny screwdriver prise off the tonearm wiring screw and seems to be of a soft-ish metal, so connectors from the back of the cartridge and remove the old cartridge it's best to push hard and firm on it and undo (photo 2) it one go, if you are too weak with it there is a real chance you'll damage the head making On the plastic tonearm version of this deck it is quite hard to access removal extremely diff
