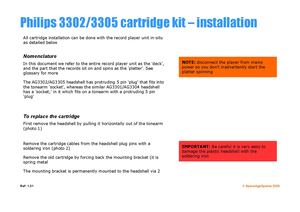

Philips 3302/3305 cartridge kit – installation All cartridge installation can be done with the record player unit in-situ as detailed below Nomenclature In this document we refer to the entire record player unit as the 'deck', NOTE: disconnect the player from mains and the part that the records sit on and spins as the 'platter'. See power so you don't inadvertently start the glossary for more platter spinning The AG3302/AG3305 headshell has protruding 5 pin 'plug' that fits into the tonearm 'socket', whereas the similar AG3301/AG3304 headshell has a 'socket;' in it which fits on a tonearm with a protruding 5 pin 'plug' To replace the cartridge First remove the headshell by pulling it horizontally out of the tonearm (photo 1) Remove the cartridge cables from the headshell plug pins with a soldering iron (photo 2) IMPORTANT: Be careful it is very easy to damage the plastic headshell with the Remove the old cartridge by forcing back the mounting bracket (it is soldering iron spring metal
