JANSTEEL USA INC- 53’ GOOSENECK 2-AXLE CHASSIS FUNCTION Carries one (1) 53' Domestic ISO container. Meets all AAR, FMVSS, ISO, ANSI, DOT, SAE and TTMA. The 53’ gooseneck container chassis is capable of hauling a 53’ ISO container. This model fits the...
More

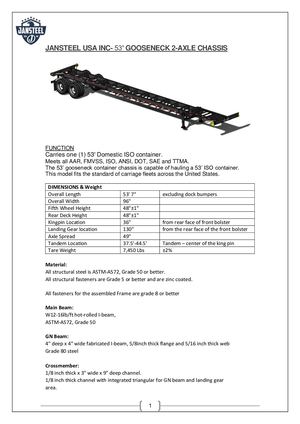

JANSTEEL USA INC- 53’ GOOSENECK 2-AXLE CHASSIS FUNCTION Carries one (1) 53' Domestic ISO container. Meets all AAR, FMVSS, ISO, ANSI, DOT, SAE and TTMA. The 53’ gooseneck container chassis is capable of hauling a 53’ ISO container. This model fits the standard of carriage fleets across the United States. DIMENSIONS & Weight Overall Length 53' 7" excluding dock bumpers Overall Width 96" Fifth Wheel Height 48"±1" Rear Deck Height 48"±1" Kingpin Location 36" from rear face of front bolster Landing Gear location 130” from the rear face of the front bolster Axle Spread 49" Tandem Location 37.5'-44.5' Tandem – center of the king pin Tare Weight 7,450 Lbs ±2% Material: All structural steel is ASTM-A572, Grade 50 or better. All structural fasteners are Grade 5 or better and are zinc coated. All fasteners for the assembled Frame are grade 8 or better Main Beam: W12-16lb/ft hot-rolled I-beam, ASTM-A572, Grade 50 GN Beam: 4" deep x 4" wide fabricated I-beam, 5/8inch thick flange and 5/16 inch thic
