REMOVAL AND INSTALLATION REAR AXLE 18 -The preloading/rolling torque adjustment is carried out by increasing the ring nut torque gradually, being careful not to exceed. Once the requested preloading value is achieved, stake the ring nut (10), using a hammer...
More

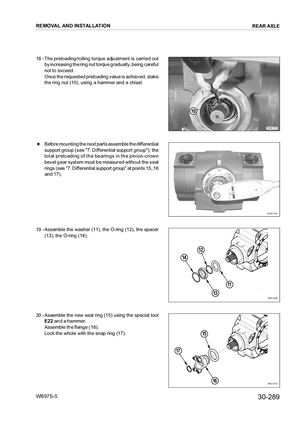

REMOVAL AND INSTALLATION REAR AXLE 18 -The preloading/rolling torque adjustment is carried out by increasing the ring nut torque gradually, being careful not to exceed. Once the requested preloading value is achieved, stake the ring nut (10), using a hammer and a chisel. 10 RKZC7770 a Before mounting the next parts assemble the differential support group (see "7. Differential support group"); the total preloading of the bearings in the pinion-crown bevel gear system must be measured without the seal rings (see "7. Differential support group" at points 15, 16 and 17). RKZC7780 19 -Assemble the washer (11), the O-ring (12), the spacer (13), the O-ring (14). 12 14 11 13 RKZ13080 20 -Assemble the new seal ring (15) using the special tool E22 and a hammer. Assemble the flange (16). Lock the whole with the snap ring (17). 15 17 16 RKZ13070 WB97S-5 30-289
