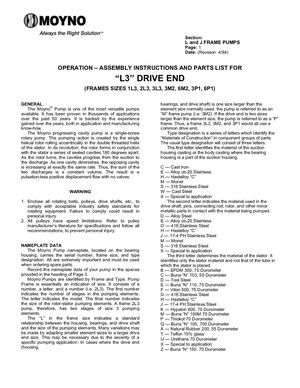

Section: L and J FRAME PUMPS Page: 1 Date: (Revision 4/94) OPERATION – ASSEMBLY INSTRUCTIONS AND PARTS LIST FOR “L3” DRIVE END (FRAMES SIZES 1L3, 2L3, 3L3, 3M2, 6M2, 3P1, 6P1) GENERAL bearings, and drive shaft) is one size larger than the ® The Moyno Pump...
More
Section: L and J FRAME PUMPS Page: 1 Date: (Revision 4/94) OPERATION – ASSEMBLY INSTRUCTIONS AND PARTS LIST FOR “L3” DRIVE END (FRAMES SIZES 1L3, 2L3, 3L3, 3M2, 6M2, 3P1, 6P1) GENERAL bearings, and drive shaft) is one size larger than the ® The Moyno Pump is one of the most versatile pumps element size normally used, the pump is referred to as an available. It has been proven in thousands of applications “M” frame pump (i.e. 3M2). If the drive end is two sizes over the past 50 years. It is backed by the experience larger than the element size, the pump is referred to as a “P” gained over the years, both in application and manufacturing frame. Thus, a frame 3L3, 3M2, and 3P1 would all use a know-how. common drive end. The Moyno progressing cavity pump is a single-screw Type designation is a series of letters which identify the rotary pump. The pumping action is created by the single “Materials of Construction” in component groups of parts. helical rotor rolling eccentrically in the doub
