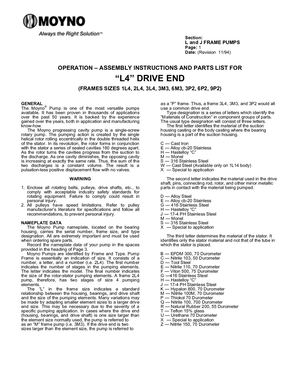

Section: L and J FRAME PUMPS Page: 1 Date: (Revision 11/94) OPERATION – ASSEMBLY INSTRUCTIONS AND PARTS LIST FOR “L4” DRIVE END (FRAMES SIZES 1L4, 2L4, 3L4, 3M3, 6M3, 3P2, 6P2, 9P2) GENERAL ® as a “P” frame. Thus, a frame 3L4, 3M3, and 3P2 would all The...
More
Section: L and J FRAME PUMPS Page: 1 Date: (Revision 11/94) OPERATION – ASSEMBLY INSTRUCTIONS AND PARTS LIST FOR “L4” DRIVE END (FRAMES SIZES 1L4, 2L4, 3L4, 3M3, 6M3, 3P2, 6P2, 9P2) GENERAL ® as a “P” frame. Thus, a frame 3L4, 3M3, and 3P2 would all The Moyno Pump is one of the most versatile pumps use a common drive end. available. It has been proven in thousands of applications Type designation is a series of letters which identify the over the past 50 years. It is backed by the experience “Materials of Construction” in component groups of parts. gained over the years, both in application and manufacturing The usual type designation will consist of three letters. know-how. The first letter identifies the material of the suction The Moyno progressing cavity pump is a single-screw housing casting or the body casting where the bearing rotary pump. The pumping action is created by the single housing is a part of the suction housing. helical rotor rolling eccentrically in the double threa
