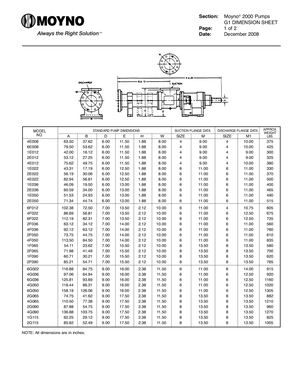

Section: Moyno® 2000 Pumps MOYNO Page: G1 DIMENSION SHEET 1 of 2 ™ Date: December 2008 STANDARD PUMP DIMENSIONS SUCTION FLANGE DATA DISCHARGE FLANGE DATA APPROX. MODEL WEIGHT NO. A B D E H W SIZE M SIZE M1 LBS. 4E008 63.50 37.62 6.00 11.50 1.88 8.00 4 9.00...
More
Section: Moyno® 2000 Pumps MOYNO Page: G1 DIMENSION SHEET 1 of 2 ™ Date: December 2008 STANDARD PUMP DIMENSIONS SUCTION FLANGE DATA DISCHARGE FLANGE DATA APPROX. MODEL WEIGHT NO. A B D E H W SIZE M SIZE M1 LBS. 4E008 63.50 37.62 6.00 11.50 1.88 8.00 4 9.00 4 10.00 375 6E008 79.50 53.62 6.00 11.50 1.88 8.00 4 9.00 4 10.00 425 1E012 42.00 16.12 6.00 11.50 1.88 8.00 4 9.00 4 9.00 300 2E012 53.12 27.25 6.00 11.50 1.88 8.00 4 9.00 4 9.00 325 4E012 75.62 49.75 6.00 11.50 1.88 8.00 4 9.00 4 10.00 380 1E022 43.31 17.19 6.00 12.50 1.88 8.00 6 11.00 6 11.00 330 2E022 56.19 30.06 6.00 12.50 1.88 8.00 6 11.00 6 11.00 370 4E022 82.94 56.81 6.00 12.50 1.88 8.00 6 11.00 6 11.00 500 1E036 46.09 19.50 6.00 13.00 1.88 8.00 6 11.00 6 11.00 400 2E036 60.59 34.00 6.00 13.00 1.88 8.00 6 11.00 6 11.00 465 1E050 51.53 24.93 6.00 13.00 1.88 8.00 6 11.00 6 11.00 490 2E050 71.34 44.74 6.00 13.00 1.88 8.00 6 11.00 6 11.00 515 6F012 102.38 72.50 7.00 13.50 2.12 10.00 6 11.00 4 10.75 605 4F022 86.69 56.81 7.00 13.5
