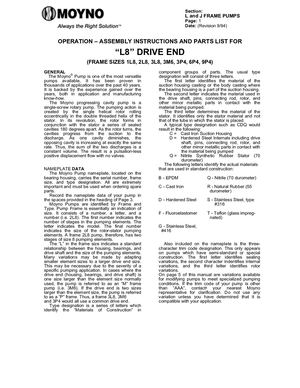

Section: L and J FRAME PUMPS Page: 1 Date: (Revision 9/94) OPERATION – ASSEMBLY INSTRUCTIONS AND PARTS LIST FOR “L8” DRIVE END (FRAME SIZES 1L8, 2L8, 3L8, 3M6, 3P4, 6P4, 9P4) GENERAL ® component groups of parts. The usual type The Moyno Pump is one of the...
More
Section: L and J FRAME PUMPS Page: 1 Date: (Revision 9/94) OPERATION – ASSEMBLY INSTRUCTIONS AND PARTS LIST FOR “L8” DRIVE END (FRAME SIZES 1L8, 2L8, 3L8, 3M6, 3P4, 6P4, 9P4) GENERAL ® component groups of parts. The usual type The Moyno Pump is one of the most versatile designation will consist of three letters. pumps available, It has been proven in The first letter identifies the material of the thousands of applications over the past 40 years. suction housing casting or the body casting where It is backed by the experience gained over the the bearing housing is a part of the suction housing. years, both in application and manufacturing The second letter indicates the material used in know-how. the drive shaft, pins, connecting rod, rotor, and The Moyno progressing cavity pump is a other minor metallic parts in contact with the single-screw rotary pump. The pumping action is material being pumped. created by the single helical rotor rolling The third letter determines the material of
