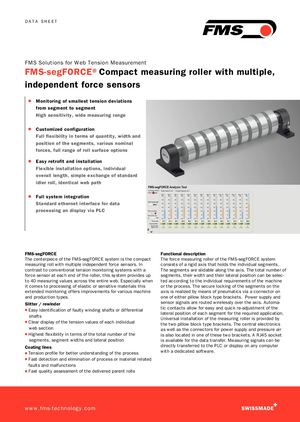

DATA SHEET FMS Solutions for Web Tension Measurement FMS-segFORCE®Compact measuring roller with multiple, independent force sensors l Monitoring of smallest tension deviations from segment to segment High sensitivity, wide measuring range l Customized configuration Full flexibility in terms of quantity, width and position of the segments, various nominal forces, full range of roll surface options l Easy retrofit and installation Flexible installation options, individual overall length, simple exchange of standard idler roll, identical web path l Full system integration Standard ethernet interface for data processing an display via PLC FMS-segFORCE Functional description The centerpiece of the FMS-segFORCE system is the compact The force measuring roller of the FMS-segFORCE system measuring roll with multiple independent force sensors. In consists of a rigid axis that holds the individual segments. contrast to conventional tension monitoring systems with a The segments are slidable alon
