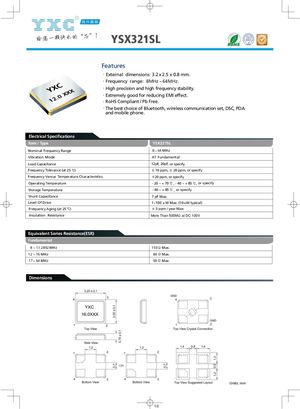

YSX321SL Features ． External dimensions: 3.2 x 2.5 x 0.8 mm. ． Frequency range: 8MHz ~ 64MHz. C Y X X ．High precision and high frequency stability. 0 X X ．Extremely good for reducing EMI effect. . 12 ．RoHS Compliant / Pb Free. The best choice of Bluetooth, wireless communication set, DSC, PDA ． and mobile phone. Electrical Specifications Item / Type YSX321SL Nominal Frequency Range 8 ~ 64 MHz Vibration Mode AT Fundamental Remark : Speci Load Capacitance 12 pF, 20 pF, or specify mark : Speci Frequency Tolerance (at 25 ℃) ± 10 ppm, ± 20 ppm, or specify Frequency Versus Temperature Characteristics ± 20 ppm, or specify Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃ , or specify Storage Temperature - 40 ~ + 85 ℃ , or specify Shunt Capacitance 7 pF Max. Level Of Drive 1 ~100 μW Max. (10 uW typical) Frequency Aging (at 25 ℃) ± 3 ppm / year Max. Insulation Resistance More Than 500MΩ at DC 100V Equivalent Series Resistance(ESR) Fundamental 8 ~ 11.2892 MHz 150 Ω Max. 12 ~ 16 MHz 80 Ω Max. 1
