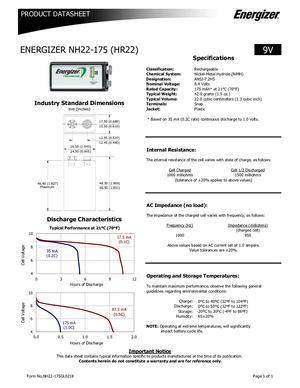

PRODUCT DATASHEET ENERGIZER NH22-175 (HR22) 9V Specifications Classification: Rechargeable Chemical System: Nickel-Metal Hydride (NiMH) Designation: ANSI-7.2H5 Nominal Voltage: 8.4 Volts Rated Capacity: 175 mAh* at 21°C (70°F) Typical Weight: 42.0 grams (1.5 oz.) Typical Volume: 22.0 cubic centimeters (1.3 cubic inch) Industry Standard Dimensions Terminals: Snap mm (inches) Jacket: Plastic * Based on 35 mA (0.2C rate) continuous discharge to 1.0 volts. 17.50 (0.689) 15.50 (0.610) 12.95 (0.510) 12.45 (0.490) 26.50 (1.043) 24.50 (0.965) Internal Resistance: The internal resistance of the cell varies with state of charge, as follows: Cell Charged Cell 1/2 Discharged 1000 milliohms 1500 milliohms (tolerance of ±20% applies to above values) 46.40 (1.827) 48.50 (1.909) Maximum 46.50 (1.831) AC Impedance (no load): The impedance of the charged cell varies with frequency, as follows: Discharge Characteristics Frequency (Hz) Impedance (milliohms) Typical Performance at 21ºC (70ºF) (charged cell
