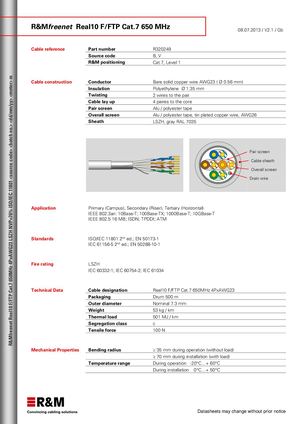

R&Mfreenet Real10 F/FTP Cat.7 650 MHz 08.07.2013 / V2.1 / Gb Cable reference Part number R320249 Source code B, V R&M positioning Cat.7, Level 1 R&Mfreenet Real10 F/FTP Cat.7 650MHz 4PxAWG23 LSZH NVP=76% ISO/IEC 11801 <source code> <batch no.> <dd/mm/yy> <meter> m Cable construction Conductor Bare solid copper wire AWG23 ( Ø 0.56 mm) Insulation Polyethylene Ø 1.35 mm Twisting 2 wires to the pair Cable lay up 4 paires to the core Pair screen Alu / polyester tape Overall screen Alu / polyester tape, tin plated copper wire, AWG26 Sheath LSZH, gray RAL 7035 Pair screen Cable sheath Overall screen Drain wire Application Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM Standards ISO/IEC 11801 2nd ed.; EN 50173-1 IEC 61156-5 2nd ed.; EN 50288-10-1 Fire rating LSZH IEC 60332-1; IEC 60754-2; IEC 61034 Technical Data Cable designation Real10 F/FTP Cat.7 650MHz 4PxAWG23 Packaging Drum 500 m Oute
