1116/15 Gantrail Welded Base Fixing www.gantrail.com 1116/15 The GANTRAIL 1116/15 SPECIFICATIONS: adjustable crane rail clip is MAX SIDE LOAD 120kN designed to fix heavy rails, 15mm HORIZONTAL RAIL ADJUSTMENT on narrow supports, in the most arduous...
More

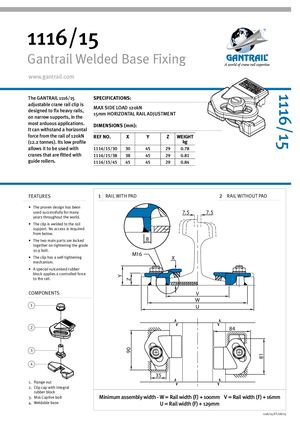

1116/15 Gantrail Welded Base Fixing www.gantrail.com 1116/15 The GANTRAIL 1116/15 SPECIFICATIONS: adjustable crane rail clip is MAX SIDE LOAD 120kN designed to fix heavy rails, 15mm HORIZONTAL RAIL ADJUSTMENT on narrow supports, in the most arduous applications. DIMENSIONS (mm): It can withstand a horizontal force from the rail of 120kN REF NO. X Y Z WEIGHT (12.2 tonnes). Its low profile kg allows it to be used with 1116/15/30 30 45 29 0.78 cranes that are fitted with 1116/15/38 38 45 29 0.81 guide rollers. 1116/15/45 45 45 29 0.84 FEATURES 1 RAIL WITH PAD 2 RAIL WITHOUT PAD • The proven design has been used successfully for many 7.5 7.5 years throughout the world. • The clip is welded to the rail support. No access is required from below. • The two main parts are locked 8 together on tightening the grade 10.9 bolt. M16 • The clip has a self-tightening X mechanism. • A special vulcanised rubber block applies a controlled force Y to the rail. Z COMPONENTS V W 1 U 2 84 90 3 81 4 35 1. Fl
