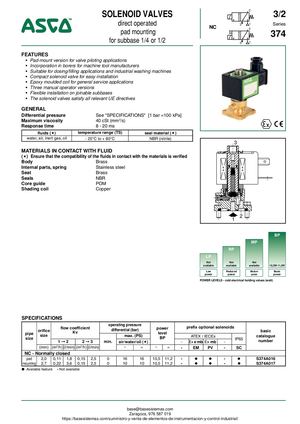

SOLENOID VALVES 2 3/2 direct operated NC 3 1 Series 2 pad mounting 374 for subbase 1/4 or 1/2 3 1 FEATURES • Pad-mount version for valve piloting applications • Incorporation in borers for machine tool manufacturers • Suitable for dosing/filling...
More
SOLENOID VALVES 2 3/2 direct operated NC 3 1 Series 2 pad mounting 374 for subbase 1/4 or 1/2 3 1 FEATURES • Pad-mount version for valve piloting applications • Incorporation in borers for machine tool manufacturers • Suitable for dosing/filling applications and industrial washing machines • Compact solenoid valve for easy installation • Epoxy moulded coil for general service applications • Three manual operator versions • Flexible installation on joinable subbases • The solenoid valves satisfy all relevant UE directives GENERAL Differential pressure See "SPECIFICATIONS" [1 bar =100 kPa] Maximum viscosity 40 cSt (mm2/s) Response time 8 - 20 ms fluids () temperature range (TS) seal material () water, air, inert gas, oil - 25°C to + 80°C NBR (nitrile) 3 MATERIALS IN CONTACT WITH FLUID () Ensure that the compatibility of the fluids in contact with the materials is verified Body Brass Internal parts, spring Stainless steel Seat Brass Seals NBR Core guide POM Shading coil Copper 2 1 BP M
