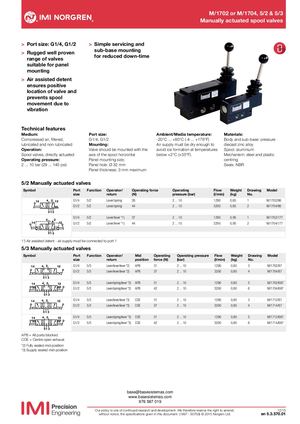

M/1702 or M/1704, 5/2 & 5/3 Manually actuated spool valves >> Port size: G1/4, G1/2 >> Simple servicing and >> Rugged well proven sub-base mounting range of valves for reduced down-time suitable for panel mounting >> Air assisted detent ensures positive...
More
M/1702 or M/1704, 5/2 & 5/3 Manually actuated spool valves >> Port size: G1/4, G1/2 >> Simple servicing and >> Rugged well proven sub-base mounting range of valves for reduced down-time suitable for panel mounting >> Air assisted detent ensures positive location of valve and prevents spool movement due to vibration Technical features Medium: Port size: Ambient/Media temperature: Materials: Compressed air, filtered, G1/4, G1/2 -20°C ... +80°C (-4 ... +176°F) Body and sub-base: pressure lubricated and non-lubricated Mounting: Air supply must be dry enough to diecast zinc alloy Operation: Valve should be mounted with the avoid ice formation at temperatures Spool: aluminium Spool valves, directly actuated axis of the spool horizontal below +2°C (+35°F). Mechanism: steel and plastic Operating pressure: Panel mounting size; centring 2 ... 10 bar (29 ... 145 psi) Panel hole: Ø 32 mm Seals: NBR Panel thickness: 3 mm maximum 5/2 Manually actuated valves Symbol Port Function Operator/ Operating
