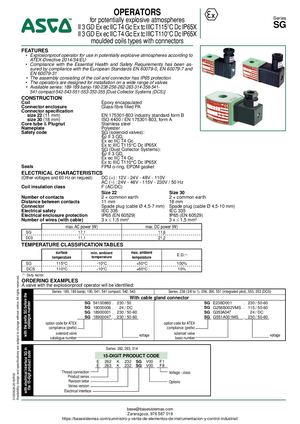

OPERATORS for potentially explosive atmospheres Series II 3 GD Ex ec IIC T4 Gc Ex tc IIIC T115°C Dc IP65X SG II 3 GD Ex ec IIC T4 Gc Ex tc IIIC T110°C Dc IP65X moulded coils types with connectors FEATURES • Explosionproof operator for use in potentially explosive atmospheres according to ATEX-Directive 2014/34/EU • Compliance with the Essential Health and Safety Requirements has been as- sured by compliance with the European Standards EN 60079-0, EN 60079-7 and EN 60079-31 • The assembly consisting of the coil and connector has IP65 protection • The operators are designed for installation on a wide range of valves • Available series: 189-189 banjo-190-238-256-262-263-314-356-541- 541 compact-542-543-551-553-353-355 [Dust Collector Systems (DCS)] CONSTRUCTION Coil Epoxy encapsulated Connector enclosure Glass-fibre filled PA Connector specification size 22 (11 mm) EN 175301-803 industry standard form B size 30 (18 mm) ISO 4400 / EN 175301-803, form A Core tube & Plugnut Stainless steel N
