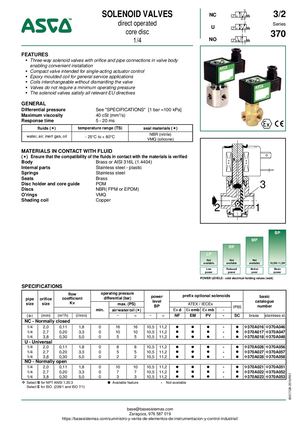

SOLENOID VALVES 1 NC 3 2 3/2 direct operated U Series core disc 370 1/4 NO FEATURES • Three-way solenoid valves with orifice and pipe connections in valve body enabling convenient installation • Compact valve intended for single-acting actuator control • Epoxy moulded coil for general service applications • Coils interchangeable without dismantling the valve • Valves do not require a minimum operating pressure • The solenoid valves satisfy all relevant EU directives GENERAL Differential pressure See "SPECIFICATIONS" [1 bar =100 kPa] Maximum viscosity 40 cSt (mm2/s) Response time 5 - 20 ms fluids () temperature range (TS) seal materials () NBR (nitrile) water, air, inert gas, oil - 25°C to + 80°C VMQ (silicone) MATERIALS IN CONTACT WITH FLUID () Ensure that the compatibility of the fluids in contact with the materials is verified Body Brass or AISI 316L (1.4404) Internal parts Stainless steel - plastic Springs Stainless steel Seats Brass Disc holder and core guide Discs POM NBR( FPM
