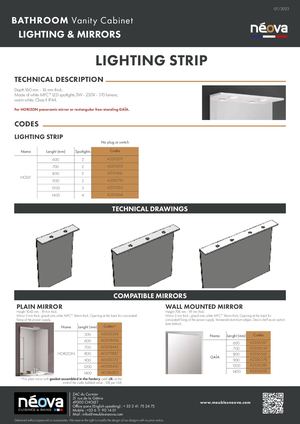

07/2023 BATHROOM Vanity Cabinet LIGHTING & MIRRORS LIGHTING STRIP TECHNICAL DESCRIPTION Depth160 mm - 16 mm thick. Made of white MFC* LED spotlights 3W - 230V - 170 lumens, warm white. Class II IP44. For HORIZON panoramic mirror or rectangular free-standing...
More
07/2023 BATHROOM Vanity Cabinet LIGHTING & MIRRORS LIGHTING STRIP TECHNICAL DESCRIPTION Depth160 mm - 16 mm thick. Made of white MFC* LED spotlights 3W - 230V - 170 lumens, warm white. Class II IP44. For HORIZON panoramic mirror or rectangular free-standing GAÏA. CODES LIGHTING STRIP No plug or switch Name Lenght (mm) Spotlights Codes 600 2 A2311379 700 2 A2311393 800 2 A2311416 HOLLY 900 2 A2341710 1200 3 A2311355 1400 4 A2311454 TECHNICAL DRAWINGS COMPATIBLE MIRRORS PLAIN MIRROR WALL MOUNTED MIRROR Height 1042 mm - 19 mm thick. Height 706 mm - 19 mm thick. Mirror 3 mm thick, glued onto white MFC* 16mm thick. Opening at the back for concealed Mirror 3 mm thick , glued onto white MFC* 16mm thick. Opening at the back for fixing of the power supply. concealed fixing of the power supply. Veneered aluminium edges. Decor shelf as an option (see below). Name Lenght (mm) Codes(2) 500 A2305354 Name Lenght (mm) Codes 600 A0508436 A2356547 600 700 A0508443 700 A2356554 HORIZON 800 A0579887 800 A
