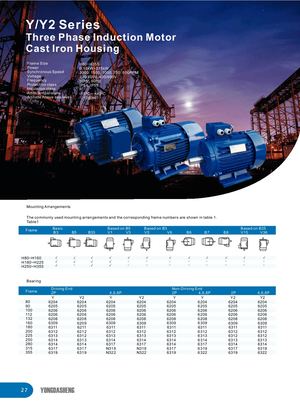

Y/Y2 Series Three Phase Induction Motor Cast Iron Housing Frame Size H80~H355 Power 0.18kW~315kW Synchronous Speed 3000, 1500, 1000, 750, 600RPM Voltage 230/400V, 400/690V Frequency 50Hz, 60Hz Protection class IP54, IP55 Insulation class F Ambi.temperature -15ºC ~ +40ºC Altitude Above sea level ≤1000m Mounting Arrangements The commonly used mounting arrangements and the corresponding frame numbers are shown in table 1. Table1 Basic Based on B5 Based on B3 Based on B35 Frame B3 B5 B35 V1 V3 V5 V6 B6 B7 B8 V15 V36 H80~H160 √ √ √ √ √ √ √ √ √ √ √ √ H180~H225 √ √ √ √ – – – – – – – – H250~H355 √ – √ √ – – – – – – – – Bearing Driving End Non-Driving End Frame 2P 4,6,8P 2P 4,6,8P 2P 4,6,8P Y Y2 Y Y2 Y Y Y2 Y2 80 6204 6204 6204 6204 6204 6204 6204 6204 90 6205 6205 6205 6205 6205 6205 6205 6205 100 6206 6206 6206 6206 6206 6206 6206 6206 112 6206 6206 6206 6206 6206 6206 6206 6206 132 6208 6208 6208 6208 6208 6208 6208 6208 160 6309 6209 6309 6309 6309 6309 6309 6309 180 6311 6211 6311 6311 631
