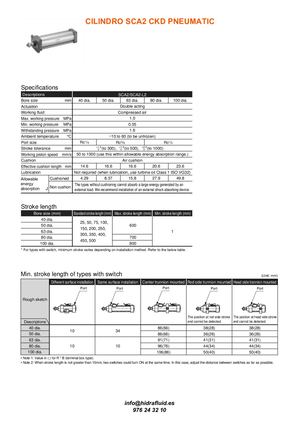

CILINDRO SCA2 CKD PNEUMATIC Specifications Descriptions SCA2/SCA2-L2 Bore size mm 40 dia. 50 dia. 63 dia. 80 dia. 100 dia. Actuation Double acting Working fluid Compressed air Max. working pressure MPa 1.0 Min. working pressure MPa 0.05 Withstanding... More

CILINDRO SCA2 CKD PNEUMATIC Specifications Descriptions SCA2/SCA2-L2 Bore size mm 40 dia. 50 dia. 63 dia. 80 dia. 100 dia. Actuation Double acting Working fluid Compressed air Max. working pressure MPa 1.0 Min. working pressure MPa 0.05 Withstanding pressure MPa 1.6 Ambient temperature °C –10 to 60 (to be unfrozen) Port size Rc /4 1 Rc3/8 Rc1/2 +1.0 +1.4 +2.0 Stroke tolerance mm 0 (to 300), 0 (to 500), 0 (to 1000) Working piston speed mm/s 50 to 1000 (use this within allowable energy absorption range.) Cushion Air cushion Effective cushion length mm 14.6 16.6 16.6 20.6 23.6 Lubrication Not required (when lubrication, use turbine oil Class 1 ISO VG32) Allowable Cushioned 4.29 8.37 15.8 27.9 49.8 energy The types without cushioning cannot absorb a large energy generated by an absorption J Non cushion external load. We recommend installation of an external shock absorbing device. Stroke length Bore size (mm) Standard stroke length (mm) Max. stroke length (mm) Min. stroke length (mm) 40 di Less
