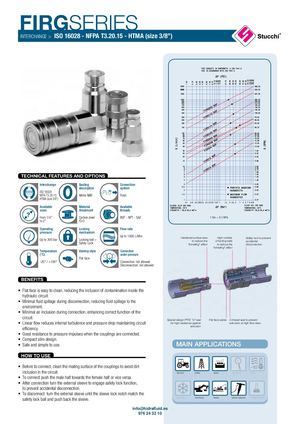

FIRGSERIES INTERCHANGE > ISO 16028 - NFPA T3.20.15 - HTMA (size 3/8”) TECHNICAL FEATURES AND OPTIONS Interchange Sealing Connection description system ISO 16028 NFPA T3.20.15 Nitrile NBR Push HTMA (size 3/8”) Available Material Available sizes /treatment...
More
FIRGSERIES INTERCHANGE > ISO 16028 - NFPA T3.20.15 - HTMA (size 3/8”) TECHNICAL FEATURES AND OPTIONS Interchange Sealing Connection description system ISO 16028 NFPA T3.20.15 Nitrile NBR Push HTMA (size 3/8”) Available Material Available sizes /treatment threads from 1/4” Carbon steel BSP - NPT - SAE 1 Bar = 0,1 MPa to 2” /Cr3 Operating Locking Flow rate pressure mechanism Up to 1000 L/Min Hardened surface area High number Safety lock to prevent Up to 300 bar Locking ball + to reduce the of locking balls accidental Safety Lock “brinelling” effect to reduce the disconnection “brinelling” effect Temperature Valving style Connection (°C) under pressure Flat face -20° / +100° Connection: not allowed Disconnection: not allowed BENEFITS • Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit. • Minimal fluid spillage during disconnection, reducing fluid spillage to the environment. • Minimal air inclusion during connection, enhancing correct functio
