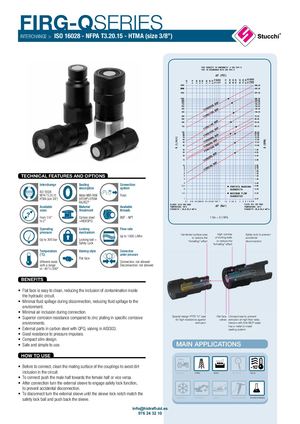

FIRG-QSERIES INTERCHANGE > ISO 16028 - NFPA T3.20.15 - HTMA (size 3/8”) TECHNICAL FEATURES AND OPTIONS Interchange Sealing Connection description system ISO 16028 NFPA T3.20.15 Nitrile NBR-FKM Push HTMA (size 3/8”) (VITON®)-EPDM- KALREZ® Available Material...
More
FIRG-QSERIES INTERCHANGE > ISO 16028 - NFPA T3.20.15 - HTMA (size 3/8”) TECHNICAL FEATURES AND OPTIONS Interchange Sealing Connection description system ISO 16028 NFPA T3.20.15 Nitrile NBR-FKM Push HTMA (size 3/8”) (VITON®)-EPDM- KALREZ® Available Material Available sizes /treatment threads from 1/4” Carbon steel BSP - NPT 1 Bar = 0,1 MPa to 2” +AISI/QPQ Operating Locking Flow rate pressure mechanism High number Hardened surface area Safety lock to prevent Up to 1000 L/Min to reduce the of locking balls accidental Up to 300 bar Locking ball + “brinelling” effect to reduce the disconnection Safety Lock “brinelling” effect Temperature Valving style Connection (°C) under pressure Flat face different seals Connection: not allowed with a range Disconnection: not allowed of -40°/+300° BENEFITS • Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit. • Minimal fluid spillage during disconnection, reducing fluid spillage to the environment. • Minimal
