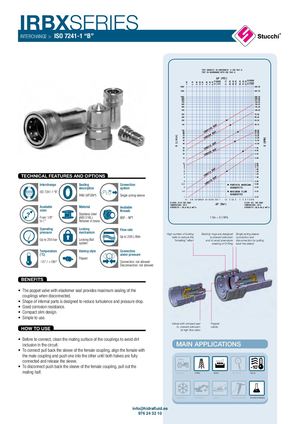

IRBXSERIES INTERCHANGE > ISO 7241-1 “B” TECHNICAL FEATURES AND OPTIONS Interchange Sealing Connection description system ISO 7241-1 “B” FKM (VITON®) Single acting sleeve Available Material Available sizes threads Stainless steel From 1/8” (AISI 316L) BSP - NPT 1 Bar = 0,1 MPa to 1” Retainer in brass Operating Locking Flow rate pressure mechanism High number of locking BackUp rings are designed Single acting sleeve: Up to 200 L/Min balls to reduce the to prevent extrusion connection and Up to 250 bar Locking Ball “brinelling” effect and to avoid premature disconnection by pulling system wearing of O-Ring back the sleeve Temperature Valving style Connection (°C) under pressure Poppet -15° / +180° Connection: not allowed Disconnection: not allowed BENEFITS • The poppet valve with elastomer seal provides maximum sealing of the couplings when disconnected. • Shape of internal parts is designed to reduce turbulence and pressure drop. • Good corrosion resistance. • Compact slim design. • Simp
