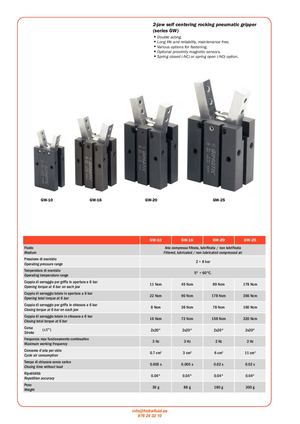

2-jaw self centering rocking pneumatic gripper (series GW) • Double acting. • Long life and reliability, maintenance free. • Various options for fastening. • Optional proximity magnetic sensors. • Spring closed (-NC) or spring open (-NO) option. GW-10 GW-16 GW-20 GW-25 GW-10 GW-16 GW-20 GW-25 Fluido Aria compressa filtrata, lubrificata / non lubrificata Medium Filtered, lubricated / non lubricated compressed air Pressione di esercizio 2 ÷ 8 bar Operating pressure range Temperatura di esercizio 5° ÷ 60°C. Operating temperature range Coppia di serraggio per griffa in apertura a 6 bar 11 Ncm 45 Ncm 89 Ncm 178 Ncm Opening torque at 6 bar on each jaw Coppia di serraggio totale in apertura a 6 bar 22 Ncm 90 Ncm 178 Ncm 356 Ncm Opening total torque at 6 bar Coppia di serraggio per griffa in chiusura a 6 bar 8 Ncm 36 Ncm 78 Ncm 160 Ncm Closing torque at 6 bar on each jaw Coppia di serraggio totale in chiusura a 6 bar 16 Ncm 72 Ncm 156 Ncm 320 Ncm Closing total torque at 6 bar Corsa (±1°) 2x20°
