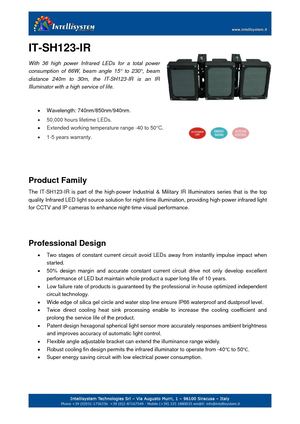

"With 36 high power Infrared LEDs for a total power consumption of 66W, beam angle 15° to 230°, beam distance 240m to 30m, the IT-SH123-IR is an IR Illuminator with a high service of life.
Wavelength: 740nm/850nm/940nm.
50,000 hours lifetime LEDs....
More
"With 36 high power Infrared LEDs for a total power consumption of 66W, beam angle 15° to 230°, beam distance 240m to 30m, the IT-SH123-IR is an IR Illuminator with a high service of life.
Wavelength: 740nm/850nm/940nm.
50,000 hours lifetime LEDs.
Extended working temperature range -40 to 50°C.
1-5 years warranty.
The IT-SH123-IR is part of the high-power Industrial & Military IR Illuminators series that is the top quality Infrared LED light source solution for night-time illumination, providing high-power infrared light for CCTV and IP cameras to enhance night-time visual performance."
"TECHNICAL SPECIFICATIONS
LED type: 36 pieces 2W dot-matrix IR LEDs
Wavelength: 740nm/850nm/940nm
Voltage: AC85-265V/DC12V/AC24V
Power consumption: 66W (50% design margin) (850nm)
Day & Night switch: Auto (build in photocell)
Cable length: 1.3m
Mounting: Wall mounting “U” bracket
Temperature: -40℃ to 50℃
Grade of protection: IP66
Color: Black
Housing: Aluminum
