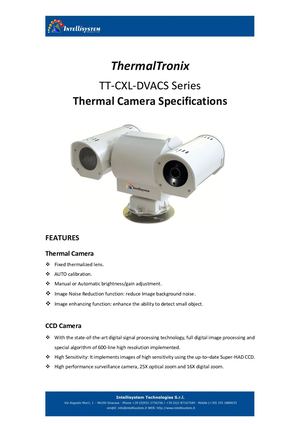

Thermal CCD Digital Camera- Uncooled FPA Detector 384×288 – Series: 4 Models
Technical Specifications:
Thermal Imaging Camera Detector characteristics
Detector type Un-cooled FPA micro-bolometer
Resolution 384*288
Detector pitch 25μm
Frame rate 50HZ
Image characteristics
Lens TT-C1009XL-DVACS f=9mm
TT-C1018XL-DVACS f=18mm
TT-C1037XL-DVACS f=37mm
TT-C1050XL-DVACS f=50mm
NETD ≤100mk
Focus Range Athermalized, focus-free
Functions
Brightness/gain control Manual brightness/gain; Automatic brightness/manual gain; Automatic brightness/gain
Automatic brightness/gain configuration adjustment 2 fixed patterns, 8 users from definition establishment pattern
Polarity reversal Black hot/white hot
Electronic zoom 2x
Noise reduction function Yes
Image intensification function Yes
Calibration Automatic calibration
CCD Camera Resolution Total pixels 795(H)x596(V), Effective pixels 752(H)x582(V)
Imaging Device 1/4″Super HAD CCD
lens 3.66-91.36mm (F1.65-3.0
