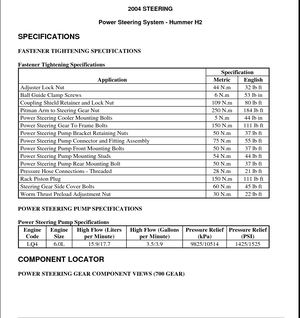

2004 Hummer H2 2004 STEERING Power Steering System - Hummer H2 2004 STEERING Power Steering System - Hummer H2 SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fastener Tightening Specifications Specification Application Metric English Adjuster Lock Nut 44...
More
2004 Hummer H2 2004 STEERING Power Steering System - Hummer H2 2004 STEERING Power Steering System - Hummer H2 SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fastener Tightening Specifications Specification Application Metric English Adjuster Lock Nut 44 N.m 32 lb ft Ball Guide Clamp Screws 6 N.m 53 lb in Coupling Shield Retainer and Lock Nut 109 N.m 80 lb ft Pitman Arm to Steering Gear Nut 250 N.m 184 lb ft Power Steering Cooler Mounting Bolts 5 N.m 44 lb in Power Steering Gear To Frame Bolts 150 N.m 111 lb ft Power Steering Pump Bracket Retaining Nuts 50 N.m 37 lb ft Power Steering Pump Connector and Fitting Assembly 75 N.m 55 lb ft Power Steering Pump Front Mounting Bolts 50 N.m 37 lb ft Power Steering Pump Mounting Studs 54 N.m 44 lb ft Power Steering Pump Rear Mounting Bolt 50 N.m 37 lb ft Pressure Hose Connections - Threaded 28 N.m 21 lb ft Rack Piston Plug 150 N.m 111 lb ft Steering Gear Side Cover Bolts 60 N.m 45 lb ft Worm Thrust Preload Adjustment Nut 30 N.m 22 lb ft POWER
