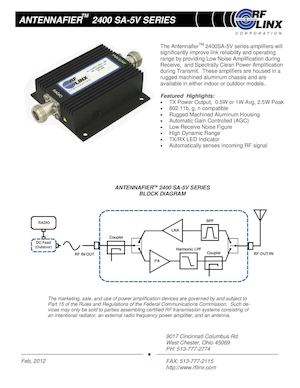

9017 Cincinnati Columbus Rd. West Chester, Ohio 45069 PH: 513-777-2774 FAX: 513-777-2115 http://www.rflinx.com Feb, 2012 ANTENNAFIER 2400 SA-5V SERIES TM ANTENNAFIERTM 2400 SA-5V SERIES BLOCK DIAGRAM The marketing, sale, and use of power amplification devices are governed by and subject to Part 15 of the Rules and Regulations of the Federal Communications Commission. Such de- vices may only be sold to parties assembling certified RF transmission systems consisting of an intentional radiator, an external radio frequency power amplifier, and an antenna. LNA RF IN/OUT RF OUT/IN DC Feed (Outdoor) RADIO BPF Coupler Coupler Harmonic LPF PA The AntennafierTM 2400SA-5V series amplifiers will significantly improve link reliability and operating range by providing Low Noise Amplification during Receive, and Spectrally Clean Power Amplification during Transmit. These amplifiers are housed in a rugged machined aluminum chassis and are available in either indoor or outdoor models.. Featured Highlig
