SHOP DRAWINGS 18315B [537]

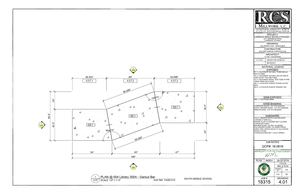

M ILLWORK, L.C. 25 FUNSTON RD, KANSAS CITY, KS 66115 PH: 913.281.7373 - RECEPTIONKC@RCSMILLWORK.COM PROJECT: LAWRENCE MIDDLE SCHOOLS PACKAGE 1 2511 INVERNESS DRIVE LAWRENCE, KS 66047 DRAWING: 004 LIBRARY 300A - GENIUS BAR CONTRACTOR: McCOWN GORDON... More

M ILLWORK, L.C. 25 FUNSTON RD, KANSAS CITY, KS 66115 PH: 913.281.7373 - RECEPTIONKC@RCSMILLWORK.COM PROJECT: LAWRENCE MIDDLE SCHOOLS PACKAGE 1 2511 INVERNESS DRIVE LAWRENCE, KS 66047 DRAWING: 004 LIBRARY 300A - GENIUS BAR CONTRACTOR: McCOWN GORDON CONSTRUCTION ARCHITECT: CLARK | HUESEMANN 5-1-2018 ISSUED FOR APPROVAL REVISION # 3 MATERIAL LEGEND: 4.02 EXPOSED: PL-1 = WILSONART NATURAL TIGRIS 4669-60 MATTE FINISH PL-2 = WILSONART NATURAL RECON 7996-38 46.404" 65" 54.596" FINE VELVET TEXTURE FINISH PL-3 = WILSONART NEPAL TEAK 7209K-78 FINE 4.CT.1 4.CT.2 4.CT.3 GRAIN FINISH WITH AEON SS-1 = LG HAUSYS HI-MACS "NORDIC WHITE" S214 SS-2 = LG HAUSYS HI-MACS "BANANA" S26 89" 69.2 ° SEMI-EXPOSED: 159.73 24" MEL-1 = WHITE MELAMINE EDGE BANDING: 42.5" 4 CASEWORK EDGES: .018" PVC BANDING SS-1 4.02 DOOR / DRAWER EDGES: .018" PVC BANDING SEMI-EXPOSED: .018" PVC BANDING 66.5" SS-1 HARDWARE: PULLS: AMEROCK BP7631226D BRUSHED CHROME 4" WIRE PULL HINGES: BLUM 107 DEGREE SELF CLOSING 42.5" 2 CONCEALED HIN Less
