SHOP DRAWINGS 18038 [759]

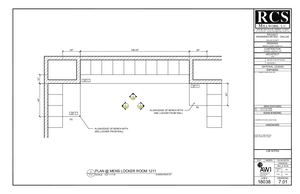

M ILLWORK, L.C. 1554 NE 69TH PLACE, ANKENY, IA 50021 PH: 515.289.3787 - RCSMILLWORK@RCSMILLWORK.COM PROJECT: MIDAMERICAN ESC - DALLAS DALLAS COUNTY DRAWING: MENS LOCKER ROOM 1211 24" 148.25" 24" CONTRACTOR: HANSEN COMPANY, INC ARCHITECT: OPN ISSUED FOR... Leggi di più

M ILLWORK, L.C. 1554 NE 69TH PLACE, ANKENY, IA 50021 PH: 515.289.3787 - RCSMILLWORK@RCSMILLWORK.COM PROJECT: MIDAMERICAN ESC - DALLAS DALLAS COUNTY DRAWING: MENS LOCKER ROOM 1211 24" 148.25" 24" CONTRACTOR: HANSEN COMPANY, INC ARCHITECT: OPN ISSUED FOR APPROVAL REVISION # MATERIAL LEGEND: EXPOSED: ST-1 CAMBRIA KIRKSTEAD 2CM 12" ST-1 ST-1 30" 5 7.04 45" 4 6 7.04 7.05 FE SEMI-EXPOSED: MEL-1 = WHITE MELAMINE ALIGN EDGE OF BENCH WITH MEL-2 = BLACK MELAMINE ST-1 2ND LOCKER FROM WALL EDGE BANDING: FE COUNTERTOP EDGE: SELF EDGE HARDWARE: ALIGN EDGE OF BENCH WITH 3RD LOCKER FROM WALL SUPPORTS: A&M (BLACK) SHELF SUPPORT: KV346 JOB NOTES: 0.01 INDEX 10-30-2018 PREMIUM MILL # 16-33 DRAWN RZ 1 PLAN @ MENS LOCKER ROOM 1211 ARCHITECTURAL BY SCALE : 1/2" = 1'-0" ArchRef M3/A151 WOODWORK P.M. KS 7.01 INSTITUTE JOB # DRAWING 18038 7.01 Leggi meno
