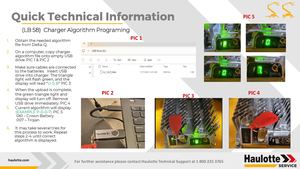

Quick Technical Information PIC 5 (LB 58) Charger Algorithm Programing 1. Obtain the needed algorithm PIC 1 file from Delta-Q. 2. On a computer, copy charger algorithm file onto empty USB drive. PIC 1 & PIC 2 3. Make sure cables are connected to the batteries Insert USB drive into charger. The triangle light will flash green, and the display will read “U-S-B” PIC 3 4. When the upload is complete, the green triangle light and PIC 2 PIC 4 display will turn off. Remove PIC 3 USB drive immediately. PIC 4 5. Current algorithm will display. (EXAMPLE P-0-0-7) PIC 5 061 – Crown Battery 007 – Trojan 6. It may take several tries for this process to work. Repeat steps 2-4 until correct algorithm is displayed. haulotte.com haulotte.com For further assistance please contact Haulotte Technical Support at 1 800 225 3765
