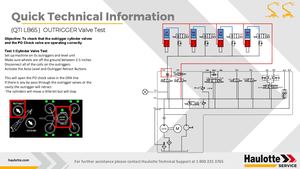

Quick Technical Information (QTI LB65 ) OUTRIGGER Valve Test Left Right Left Right CL2 CL3 Front CL1 Front Rear Rear CL4 Objective: To check that the outrigger cylinder valves and the PO Check valve are operating correctly Test 1:Cylinder Valve Test Set up machine on its outriggers and level unit Make sure wheels are off the ground between 2-5 inches Disconnect all of the coils on the outriggers Activate the Auto Level and Outrigger Retract Buttons ORA ORB SMA SMBK SMB ECA ECB PRA PRB BCA BCB C6A This will open the PO check valve in the ORA line C6 C7 CL9 CL10 CL11 CL12 If there is any by-pass through the outrigger valves or the cavity the outrigger will retract 800 psi .5 GPM CL13 CL14 TP1 -The cylinders will move a little bit but will stop TP3 CL8 TP2 2.0 CC M haulotte.com haulotte.com For further assistance please contact Haulotte Technical Support at 1 800 225 3765
