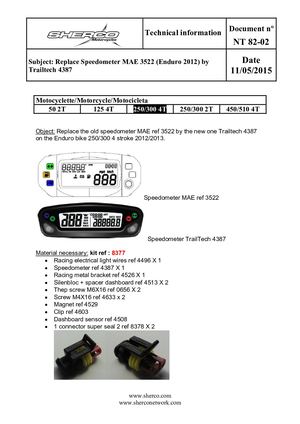

Document nº Technical information NT 82-02 Subject: Replace Speedometer MAE 3522 (Enduro 2012) by Date Trailtech 4387 11/05/2015 Motocyclette/Motorcycle/Motocicleta 50 2T 125 4T 250/300 4T 250/300 2T 450/510 4T Object: Replace the old speedometer MAE ref 3522 by the new one Trailtech 4387 on the Enduro bike 250/300 4 stroke 2012/2013. Speedometer MAE ref 3522 Speedometer TrailTech 4387 Material necessary: kit ref : 8377 • Racing electrical light wires ref 4496 X 1 • Speedometer ref 4387 X 1 • Racing metal bracket ref 4526 X 1 • Silenbloc + spacer dashboard ref 4513 X 2 • Thep screw M6X16 ref 0656 X 2 • Screw M4X16 ref 4633 x 2 • Magnet ref 4529 • Clip ref 4603 • Dashboard sensor ref 4508 • 1 connector super seal 2 ref 8378 X 2 www.sherco.com www.sherconetwork.com
