LM741

©2001 Fairchild Semiconductor Corporation www.fairchildsemi.com Rev. 1.0.1 Features • Short circuit protection • Excellent temperature stability • Internal frequency compensation • High Input voltage range • Null of offset Description The LM741 series are... More

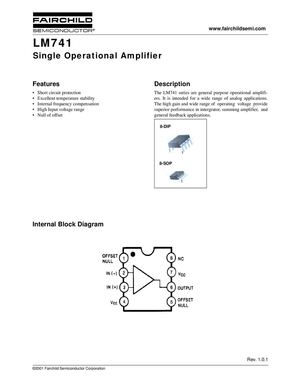

©2001 Fairchild Semiconductor Corporation www.fairchildsemi.com Rev. 1.0.1 Features • Short circuit protection • Excellent temperature stability • Internal frequency compensation • High Input voltage range • Null of offset Description The LM741 series are general purpose operational amplifiers. It is intended for a wide range of analog applications. The high gain and wide range of operating voltage provide superior performance in intergrator, summing amplifier, and general feedback applications. 8-DIP 1 8-SOP 1 Internal Block Diagram LM741 Single Operational Amplifier Less
