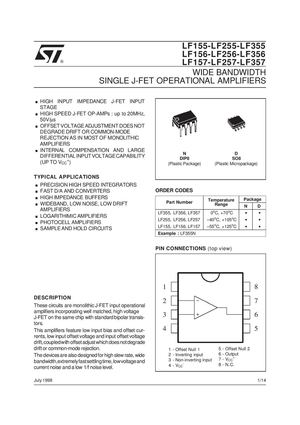

5 - Offset Null 2 6 - Output 7 - VCC + 8 - N.C. WIDE BANDWIDTH SINGLE J-FET OPERATIONAL AMPLIFIERS ® .HIGH INPUT IMPEDANCE J-FET INPUT STAGE .HIGH SPEED J-FET OP-AMPs : up to 20MHz, 50V/µs .OFFSETVOLTAGEADJUSTMENT DOES NOT DEGRADE DRIFT OR COMMON-MODE REJECTION AS IN MOST OF MONOLITHIC AMPLIFIERS .INTERNAL COMPENSATION AND LARGE DIFFERENTIAL INPUTVOLTAGECAPABILITY (UP TO VCC + ) TYPICAL APPLICATIONS .PRECISION HIGH SPEED INTEGRATORS .FAST D/A AND CONVERTERS .HIGH IMPEDANCE BUFFERS .WIDEBAND, LOW NOISE, LOW DRIFT AMPLIFIERS .LOGARITHIMIC AMPLIFIERS .PHOTOCELL AMPLIFIERS .SAMPLE AND HOLD CIRCUITS N DIP8 (Plastic Package) 1 2 3 4 8 6 5 7 1 - Offset Null 1 2 - Inverting input 3 - Non-inverting input 4 - VCC PIN CONNECTIONS (top view) DESCRIPTION These circuits are monolithic J-FET input operational amplifiers incorporating well matched, high voltage J-FET on the same chip with standardbipolar transistors. This amplifiers feature low input bias and offset currents, low input offset voltage
