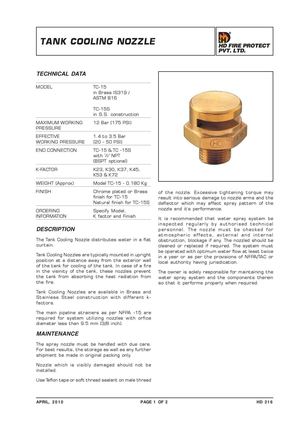

APRIL, 2010 HD 216PAGE 1 OF 2
TANK COOLING NOZZLE
TECHNICAL DATA
DESCRIPTION
The Tank Cooling Nozzle distributes water in a flat
curtain.
Tank Cooling Nozzles are typically mounted in upright
position at a distance away from the exterior wall
of the tank for cooling of the tank. In case of a fire
in the visinity of the tank, these nozzles prevent
the tank from absorbing the heat radiation from
the fire.
Tank Cooling Nozzles are available in Brass and
Stainless Steel construction with different kfactors.
The main pipeline strainers as per NFPA -15 are
required for system utilizing nozzles with orfice
diameter less than 9.5 mm (3/8 inch).
MAINTENANCE
The spray nozzle must be handled with due care.
For best results, the storage as well as any further
shipment be made in original packing only.
Nozzle which is visibly damaged should not be
installed.
Use Teflon tape or soft thread sealant on male thread
MODEL TC-15
in Brass IS319 /
ASTM B16
TC-15S
in S.S. construction
MAXIMUM WORKING 12 Bar
