LoTorq…”Sealing made Simple”
LotorqLT Series Low Torque Gaskets are recommended for all types of non-metal piping
Features
• Low Flange Bolt Torques
Required for Positive Seal – Due to the
SERIES: LT
When installing, it is recommended to tighten flange...
More
LoTorq…”Sealing made Simple”
LotorqLT Series Low Torque Gaskets are recommended for all types of non-metal piping
Features
• Low Flange Bolt Torques
Required for Positive Seal – Due to the
SERIES: LT
When installing, it is recommended to tighten flange

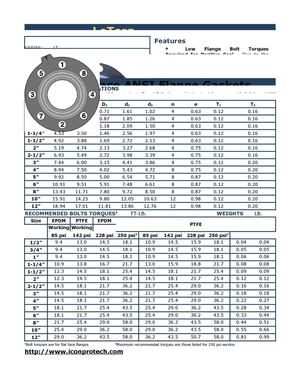

LoTorqFull Face ANSI Flange Gaskets
SAMPLE SPECIFICATIONS
All flange gaskets 1/2"to 12” are to be LoTorq LT Series molded raised face type with full face ANSI
DIMENSIONS INCHES
Size D1 D2 D3 d1 d2 n e T1 T2
1/2" 3.43 2.38 0.71 1.61 1.02 4 0.63 0.12 0.16
3/4" 3.79 2.76 0.87 1.85 1.26 4 0.63 0.12 0.16
1" 4.17 3.13 1.18 2.09 1.50 4 0.63 0.12 0.16
1-1/4" 4.53 3.50 1.46 2.56 1.97 4 0.63 0.12 0.16
1-1/2" 4.92 3.88 1.69 2.72 2.13 4 0.63 0.12 0.16
2" 5.19 4.74 2.13 3.27 2.68 4 0.75 0.12 0.16
2-1/2" 6.93 5.49 2.72 3.98 3.39 4 0.75 0.12 0.16
3" 7.44 6.00 3.15 4.41 3.86 4 0.75 0.12 0.20
4" 8.94 7.50 4.02 5.43 4.72 8 0.75 0.12 0.20
5" 9.92 8.50 5.00 6.54 5.71 8 0.87 0.12 0.20
6" 10.91 9.51 5.91 7.48 6.61 8 0.87 0.12 0.20
8" 13.43 11.71 7.80 9.72 8.5
